Main products
SYM16
Motor power W: 180
Rated voltage VDC: 24
Rated speed RPM: 2400
Maximum speed RPM: 3000
Reduction ratio: 15.75
Electromagnetic brake: 24V, 2Nm
WeightKg: 1.8
Recommended wheel diameter inch: 8-10
Note: The brake handle direction and output shaft can be customized according to needs.
View More
SYM20
Motor power W: 500
Rated voltage VDC: 24
Rated speed RPM: 1800
Maximum speed RPM: 2400
Reduction ratio: 17.73
Electromagnetic brake: 24V, 4Nm
WeightKg: 5
Recommended wheel diameter inch: 14-24
Note: The brake handle direction and output shaft can be customized according to needs.
View More
SYD35A/BL (LCD screen model to assist walking)
The new generation LCD screen controller specially designed for brushed electric wheelchairs perfectly integrates precise control and humanized design to protect your travel.
The LCD screen displays key information such as power, speed, and mode in real time. The status is clear at a glance, eliminating the anxiety of blind operation.
Switch between driving mode, power-assisted walking mode and rehabilitation walking mode with one click. Used with the walking-assisted switch, one wheelchair can achieve three functions.
Voltage: 24V
Maximum output current: 35A
Applicable battery types: lead-acid, lithium battery
Applicable motor type: Can be matched with various brushed wheelchair motors
View More

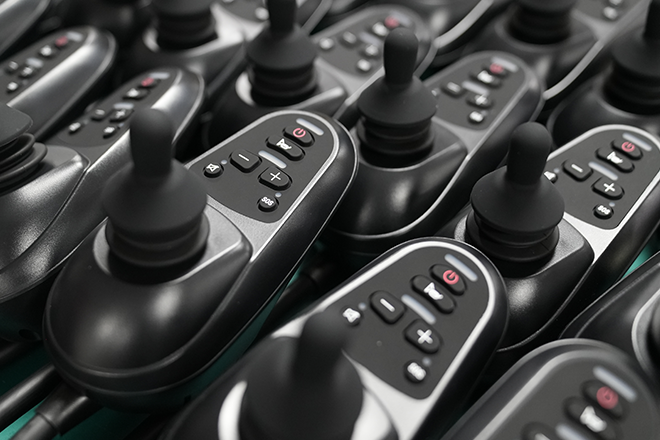

Controller JCM2X
Segment screen display
Standard 4 buttons
Standard 2.4G wireless connection
Expandable Bluetooth interface

View More
Controller JCM3X
Segment screen + LED wheelchair action prompt display
6 buttons or 8 buttons
Standard 2.4G wireless connection
Expandable Bluetooth interface
View More
Controller JCM4X
LED indicator light display
Standard 4 buttons
Standard 2.4G wireless connection
Expandable Bluetooth interface
Expandable USB charging port
View More
Controller JCM5X
Segment screen display
Standard 6 buttons
Standard USB charging port and lighting
Standard 2.4G wireless connection
Expandable Bluetooth interface
View More
ControllerJCM6X
Segment screen display
Standard 5 buttons (the mute button can switch the power-assisted walking button)
Standard 2.4G wireless connection
View More
Brushed motor controller SYD35A/BL (regular model)
Voltage: 24V
Maximum output current: 35A
Applicable battery types: lead-acid, lithium battery
Applicable motor type: Can be matched with various brushed wheelchair motors


View More
Brushed motor controller SYD35A/BL (functional expansion model)
Voltage: 24V
Maximum output current: 35A
Applicable battery types: lead-acid, lithium battery
Applicable motor type: Can be matched with various brushed wheelchair motors


View More
Brushed motor controller SYD35A/BL (one-click mute model)
Voltage: 24V
Maximum output current: 35A
Applicable battery types: lead-acid, lithium battery
Applicable motor type: Can be matched with various brushed wheelchair motors


View More
Drive PM10
Expandable fader control functions
Expandable lighting control functions
SYC series: matched with Shiyou SYM motor
SYB series: supporting various brushless wheelchair motors
Voltage: 24V
Maximum output current: 40A
Cooling method: natural cooling
Communication method: CAN bus
View More
Drive PM40
Expandable fader control functions
Expandable lighting control functions
SYC series: matched with Shiyou SYM motor
SYB series: supporting various brushless wheelchair motors
Voltage: 24V
Maximum output current: 40A
Cooling method: natural cooling
Communication method: CAN bus

View More
Drive PM75
Expandable fader control functions
Expandable lighting control functions
SYC series: matched with Shiyou SYM motor
SYB series: supporting various brushless wheelchair motors
Voltage: 24V
Maximum output current: 75A
Cooling method: natural cooling
Communication method: CAN bus
View More
Company introduction

Zhejiang Shiyou Drive Technology Co., Ltd., established on February 28, 2020, is invested and controlled by Zhejiang Jiecang Linear Drive Technology Co., Ltd. (603583). It is a technology-based enterprise focusing on the research, development, and manufacturing of motors and control systems.

The company deeply cultivates the field of motors and control systems, specializing in providing core components for the electric wheelchair industry, such as wheelchair servo motors, electric push rods, and their control systems. The operational core of Shiyou Drive is located in Ningbo, integrating R&D, production, and sales, and is committed to promoting the innovation and upgrading of domestic electric wheelchair technology.

Target


  • Provide overall solutions for electric wheelchair control systems;
  • Improve the technical level of domestic electric wheelchairs.
