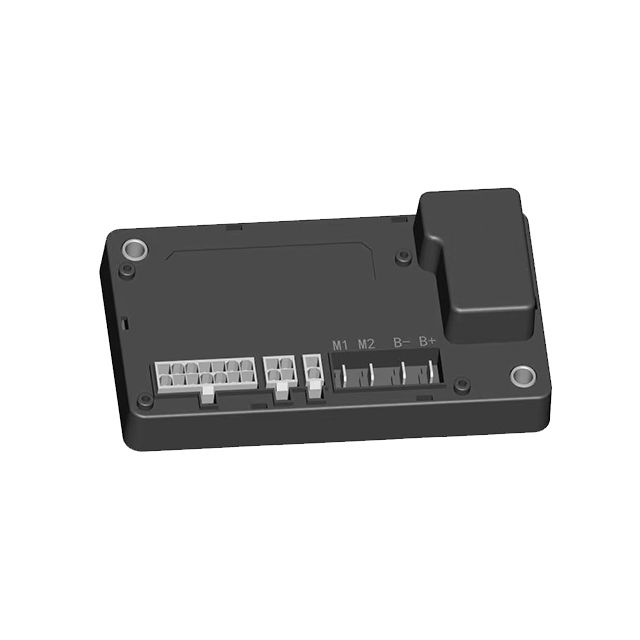

Advanced control algorithms maximize motor performance and demonstrate innovative and perfect control performance.
Adjustable acceleration curve, zero slippage on slopes, and the best ability to start uphill over obstacles.
Input voltage: 24V
PWM operating frequency: 16K
Output current: 45A
B+,B - Logic port current: <9A
KS input current: <150mA
Logic terminal input current: 1mA
Warning output current: 15mA
BD output voltage: 0-5V
LED status light driving current: 15mA
Electromagnetic brake voltage: 24V
Operating lever signal: 0-5KΩ/0-5V
Operating lever type: single-ended/one-way/two-way
Working environment temperature: -25-50℃
Storage environment temperature: -40-65℃
Sealing: IPX5
Weight: 0.3kg
Size: 72*131*39mm
